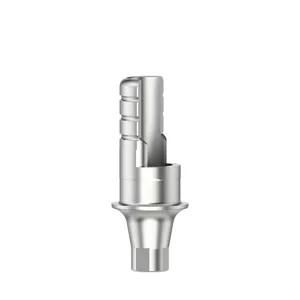

Titanium base / ASC Flex incl. abutment screw 3,5-6,5 mm Type 1 / SF angled screw channel NI GH 1,2
REF 1-09-06
TITANIUM BASE / ASC FLEX INCL. ABUTMENT SCREW 3,5-6,5 MM TYPE 1 / SF ANGLED SCREW CHANNEL NI GH 1,2
Categories: Single- & Multi Unit Prosthetics MPS Titanium Bases Show more
more than 20 pieces available
Specifications
REF Reference
1-09-06
Implant connection
NI
Chimney height
3.5-6.5 mm
Gingiva height
GH 1.2
Indication
Single-Multi-unit Prosthesis
Includes screw
incl. abutment screw
Material
Titanium
Scanbody direction
SF (Scanbody Flat): angled over the surface of the scanbody
Typ
ASC Flex
Line
MICROCONE / NI
Product Type
Titanium base
Torque
15 Ncm
Compatibility
MICROCONE
Abutment screw
1-06-04
Abutment Type
Type 1: angled over the surface of the implant connection
Screw channel
angled screw channel
Placement instrument
Ball Torx
Details
Please note: To screw in the titanium base ASC Flex you need the Placement instrument Ball-Torx 0-13-60, 0-13-59 or 6-13-06. To select the desired direction of the angled screw channel, please consider the Instruction for use.
Instructions for use
For detailed specifications, please consult the individual product label and the Medentika® Product Catalog (1-09-06/en).
