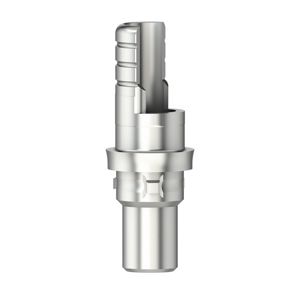

Base titane / ASC Flex vis de pilier inclus 3,5-6,5 mm type 1 / SC puits de vissage angulé D 5,0 C02 GH 1,0
REF C 1630P-1-SC
BASE TITANE / ASC FLEX VIS DE PILIER INCLUS 3,5-6,5 MM TYPE 1 / SC PUITS DE VISSAGE ANGULÉ D 5,0 C02 GH 1,0
Categories: BioHorizons Camlog*-compatible Single- & Multi Unit Prothèse Titanium Bases Show more
more than 20 pieces available
Specifications
REF Reference
C 1630P-1-SC
Implant connection
D 5.0-PS
Color coding
Chimney height
3.5-6.5 mm
Gingiva height
GH 1.0
Indication
Single-Multi-unit Prosthesis
Includes screw
incl. abutment screw
Material
Titanium
Scanbody direction
SC (Scanbody Corner): angled over the right corner of the scanbody
Typ
ASC Flex
Line
C Series
Product Type
Titanium base
Torque
20 Ncm
Compatibility
Altatec / Camlog®*
Abutment screw
C 68
Abutment Type
Type 1: angled over the surface of the implant connection
Screw channel
angled screw channel
Platform Switch Design
Yes
Placement instrument
Ball Torx
Details
Attention : Pour visser la base titane ASC Flex, utilisez les instruments à tête sphérique Torx M 03-8, M 10-8 ou 6-13-06. Pour sélectionner l'orientation de l'angulation du puits de vissage désirée, veuillezvous référer au mode d'emploi.
Instructions for use
For detailed specifications, please consult the individual product label and the Medentika® Product Catalog (C 1630P-1-SC/fr).
